Fire barrier

These covers are typically used in areas where expansion joints, material transitions, or other gaps are present, ensuring that fire cannot travel through these vulnerabilities. By installing fire barriers into the expansion joint gaps architects and engineers can significantly enhance the fire resistance of a building, providing critical protection in case of an emergency.

Fire barriers are special assemblies designed to seal off joints, gaps, and other spaces within a building where fire and smoke could potentially spread. Building regulations dictate where these products will be installed, for example expansion joints between building sections, pipes, ducts, and other structural or non-structural gaps. The primary purpose of these products is to maintain safety of the building users by preventing fire and smoke from spreading through a structure.

Fire barriers are typically made from fire-resistant materials such as mineral wool, inorganic silicate fibers, intumescent materials, or other non-combustible substances that can withstand high temperatures and are non-combustible. Depending on the area of use fire-barriers either expand heat or completely seal a gap blocking the passage of fire and smoke.

In any building, joints and gaps are inevitable due to the need for flexibility, movement, and utility routing. These areas, if left unprotected, can act as conduits for fire and smoke to spread from one part of the building to another. Fire barriers are a crucial element in the passive fire protection of a structure significantly reducing the risk of fire spreading.

1. Fire and smoke containment: The primary function of fire barriers is to contain the spread of fire and smoke within specific compartments of a building. By preventing the fire from traveling through expansion joints, penetrations, and gaps, the covers help limit damage and protect the building’s structural integrity.
2. Life safety: In the event of a fire, every second counts. Fire barriers provide additional time for occupants to evacuate safely, as they prevent fire and smoke from spreading rapidly. This is particularly important in large commercial buildings, hospitals, hotels, and other public spaces where evacuation may take time.
3. Compliance with building codes: Most building codes require fire barrier systems to be installed in critical areas, particularly in high-risk structures like commercial buildings, industrial facilities, and multi-story residential complexes. Fire barrier covers are essential for meeting these regulations and ensuring that a building is compliant with safety standards.
4. Cost-effective protection: Installing fire barriers during the construction phase is a cost-effective way to protect a building and its occupants. In the event of a fire, these products can prevent extensive damage, reducing repair costs and minimizing downtime for the business or building owner.

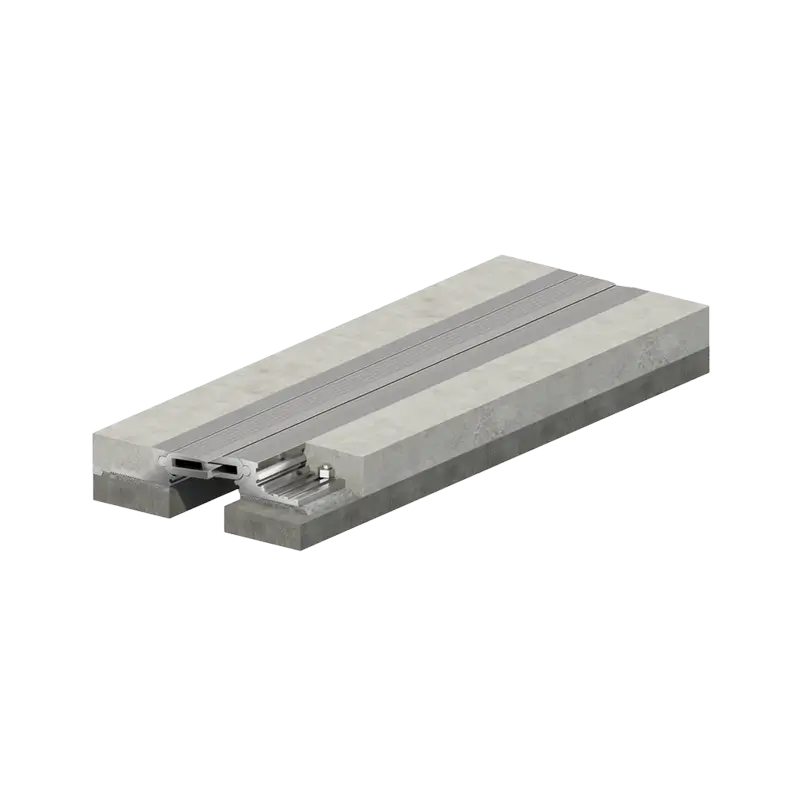

1. Expansion joint fire barriers: These products are installed in expansion joints between building sections to allow for movement while maintaining fire resistance. They are flexible, durable, and able to withstand both the movement of the building and extreme heat in the event of a fire.
2. Penetration fire barriers: These barriers are used around pipes, ducts, and cables that penetrate fire-rated walls and floors. They prevent fire and smoke from spreading through these openings while still allowing the necessary services to pass through.
3. Curtain wall fire barriers: In buildings with curtain walls, fire barrier products are used to seal the gap between the edge of the floor and the curtain wall. This ensures that the fire does not spread vertically between floors.
4. Joint fire barriers: These fire-barriers are installed in the joints of walls, ceilings, and floors to maintain the fire rating of the structure. Their special design allows them to follow the movement of a joint and retain it’s fireproof properties.

Correct installation of fire barriers is critical for ensuring their effectiveness in preventing the spread of fire. It is important to use qualified professionals who are familiar with local building codes and fire safety regulations. During installation, the fire-barrier products must be properly fitted to the specific joint or penetration to ensure a tight, fire-resistant seal.

In addition to installation, regular inspections and maintenance of fire barriers are essential. Over time, building movement, wear, and environmental conditions can affect the integrity of these products. Routine checks help ensure that the covers remain in good condition and continue to provide effective fire protection.

Fire barrier products are a vital part of any building’s passive fire protection scheme. By sealing off joints, gaps, and penetrations, they prevent the spread of fire and smoke, helping to protect both the building’s occupants and its structural integrity. Whether used in expansion joints, around penetrations, or along curtain walls, these covers provide critical protection and are essential for meeting fire safety codes. Proper installation and maintenance of fire barrier covers can save lives and reduce the risk of extensive damage in the event of a fire.
